CAD Files

Click on image to goto Onshape file. This is the most up to date file

AquaCopter

Mid

Print Settings

Prusa PETG

Filament

0.20mm Best

Support

None

Orientation

Both parts - As oriented in image

Layers

Top - 9.00-16.60mm Perimeters 6

Bottom - 44.00-55.00mm Perimeters 6

RS5

Big Board

Base - Lock.stl | Base - Top Plug.stl | Base - Bottom Plug.stl

Big Clamp

Big Board - Clamp.stl | Big Board - Clamp.gcode

Print Settings	Filament	Perimeters
0.20mm FLEX	Manny FLEX	8

Fin Holder

Fin Box.stl

Print Settings	Filament	Perimeters
0.20mm FLEX	Manny FLEX	6

Random

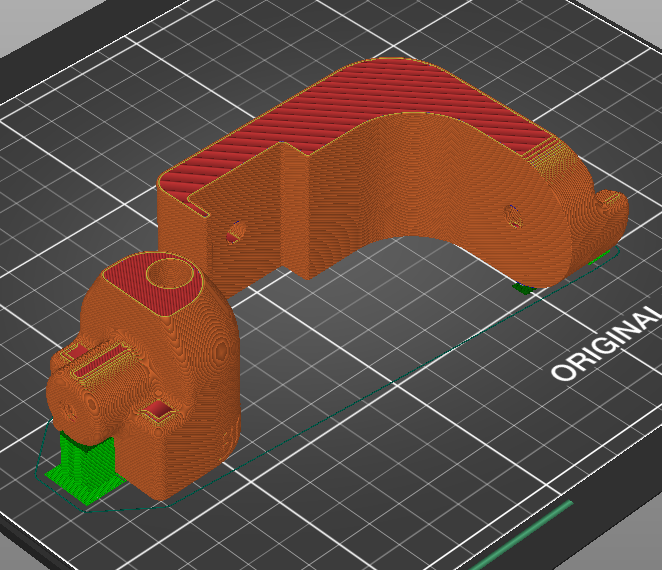

Hach Brackets

New Bracket | Pole Bracket

Print Settings	Filament	Orientation	Supports
0.30mm Fast	Generic PETG	As shown	Build plate

Need two 20mm 1/4UNC hex head bolts and knob to finish setup.

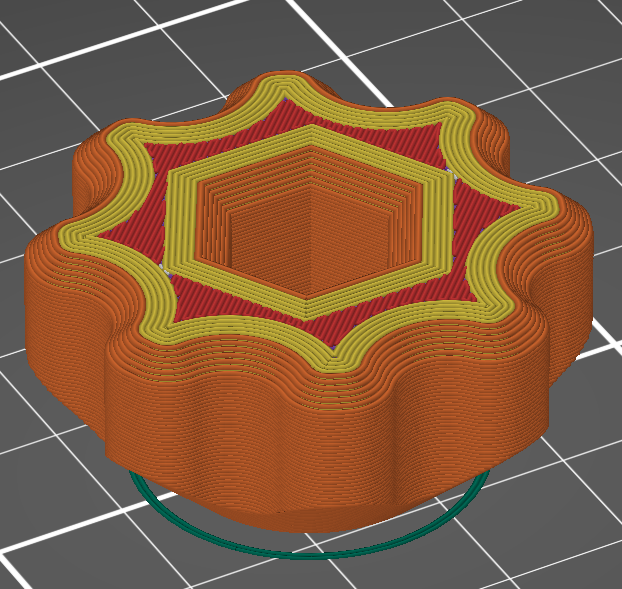

Knob

Knob.stl

Print Settings	Filament	Perimeters
0.30mm Fast	Generic PETG	6

Needed for the RS5/M9 boats and :Hach Brackets:

Logger Caps

Print Settings	Filament	Orientation
0.20mm FLEX	Manny FLEX	Top to print bed

First 3mm: no top or bottom layer. 50% rectalinear fill.

Solution Holder

Holder - Part 1.stl

Print Settings

Prusa PETG

Filament

0.30mm Fast

Perimeters

4

Orientation

Top face down

Reel Knob

Print Settings

Prusa PETG

Filament

0.20mm Best

Orientation

Both parts - Front face down

Point Orange

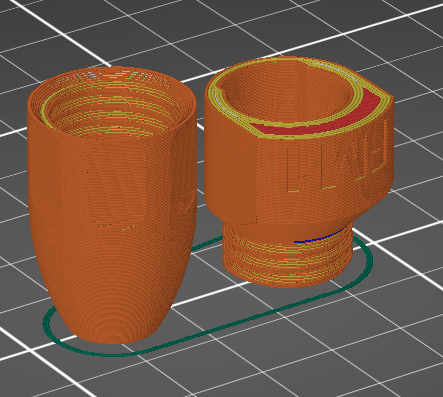

Connectors V3

Print Settings	Filament	Supports	Perimeters
0.20mm Best	Generic PETG	None	4

Current designs: Single flowmeter (FM1), double flowmeter (FM2), radar and solar (Solar), 4-20mA. All to be printed with the same settings

Run a 1.5mm bit in the holes. Crimp pins onto wire. Push pins in from top. Pull pins from bottom with pliers with decent force. Pins should stay in the connector. Put top on wire and fill with silicone. Screw top onto connector, silicone should squeeze out the top.

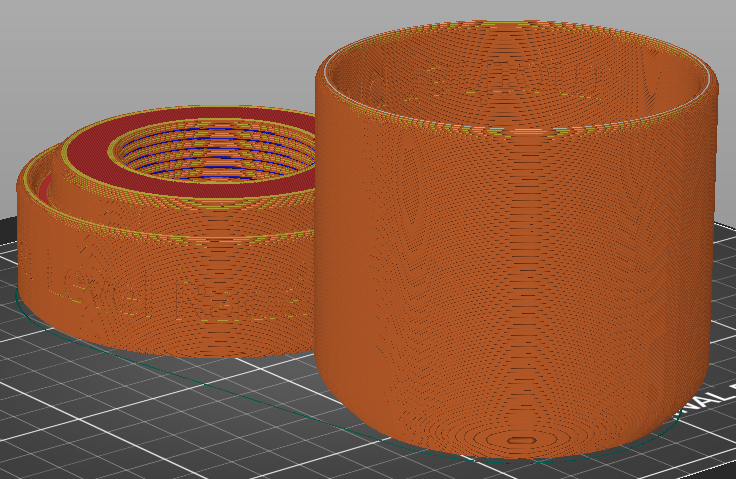

Radar Housing

Top - Top.stl | Bottom - Bottom.stl

Print Settings	Filament	Orientation	Perimeters
0.30mm Fast	Generic PETG	As shown	3
